Heavy Duty Hook Shot Blasting System for Rust Removal, Surface Preparation & Deburring
Category:
Hook-Type Shot Blasting Machine
- Description
-
Key attributes
Industry-specific attributes
Other attributes
Lead time
Product Description
Custom Hook Shot Blasting Machine with High-Power Performance

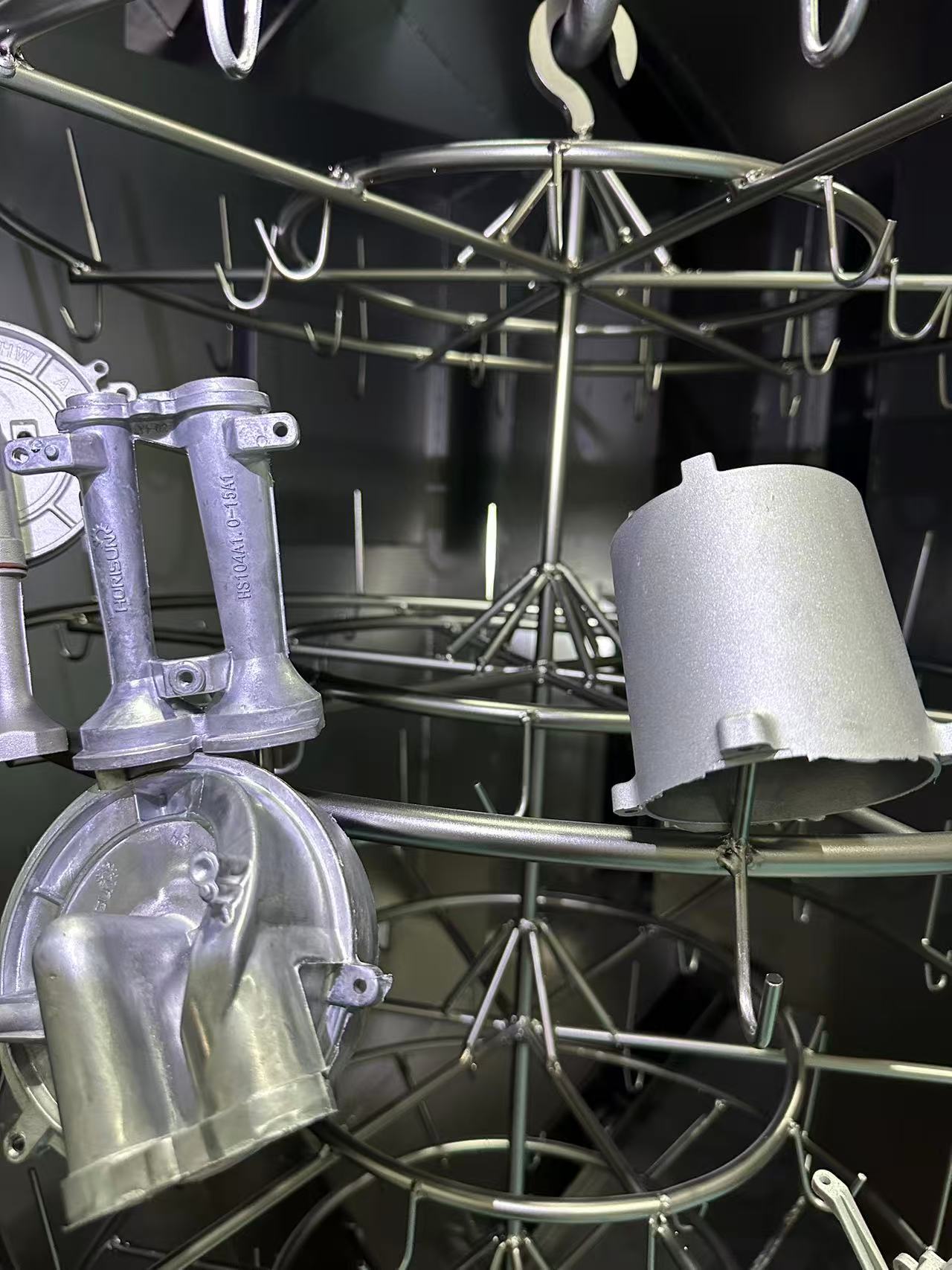

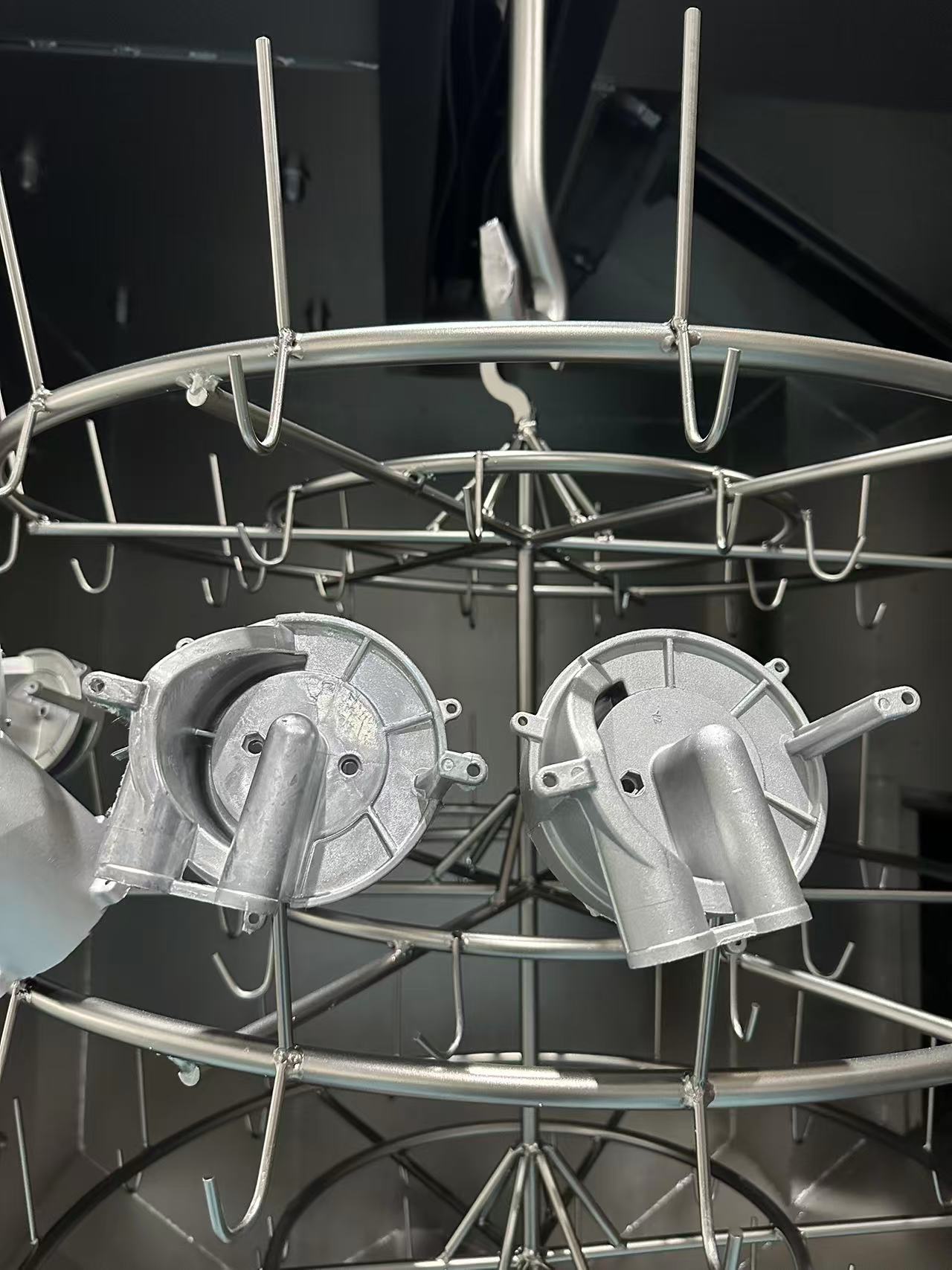

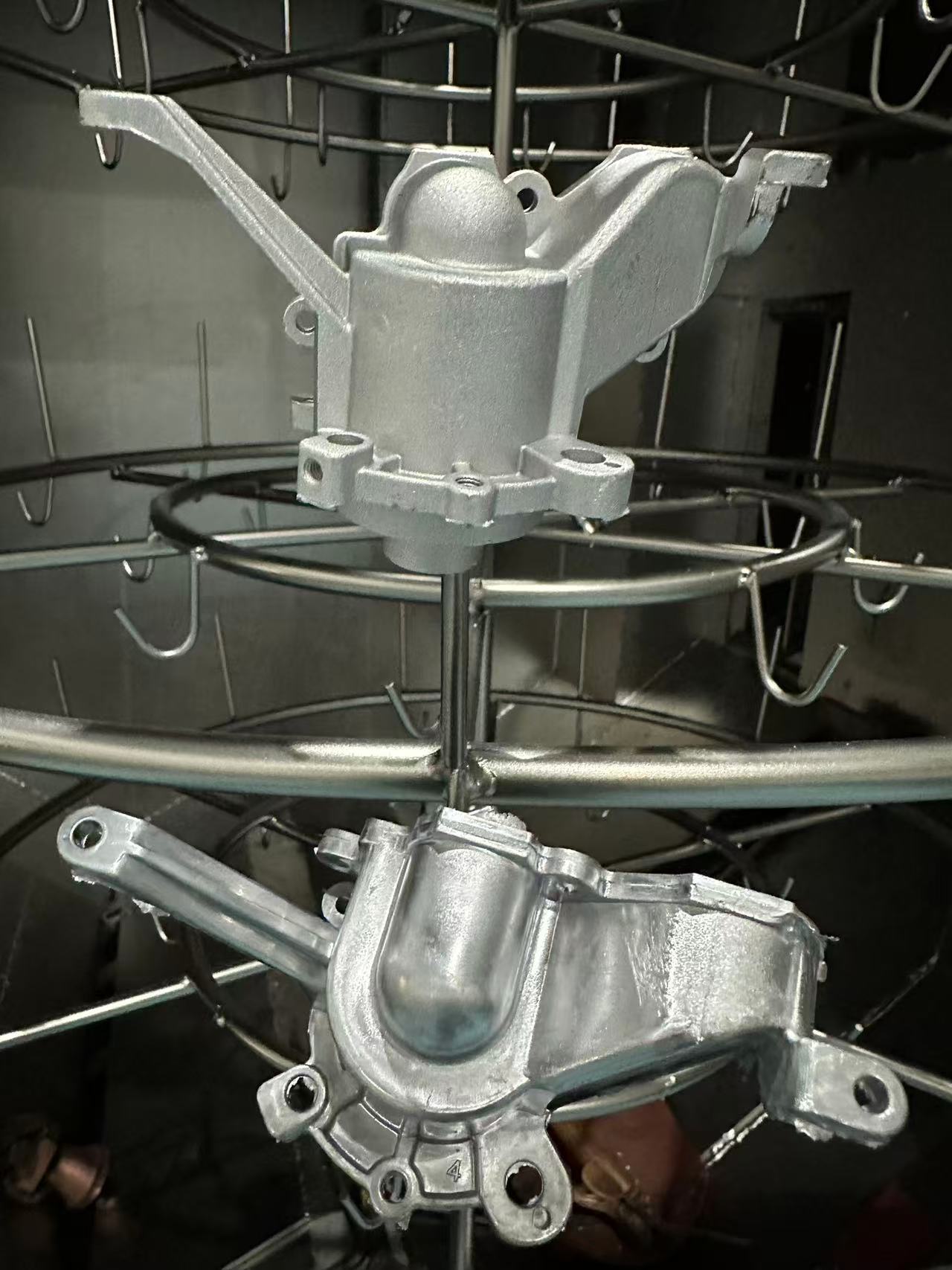

The Q37 Series Hook Type Shot Blasting Machine cleans and strengthens small castings, forgings, and steel parts in foundry,construction, chemical, and automotive industries. It removes sand, scale, and oxide from small-batch components and heat-treated parts, even delicate thin-walled items.

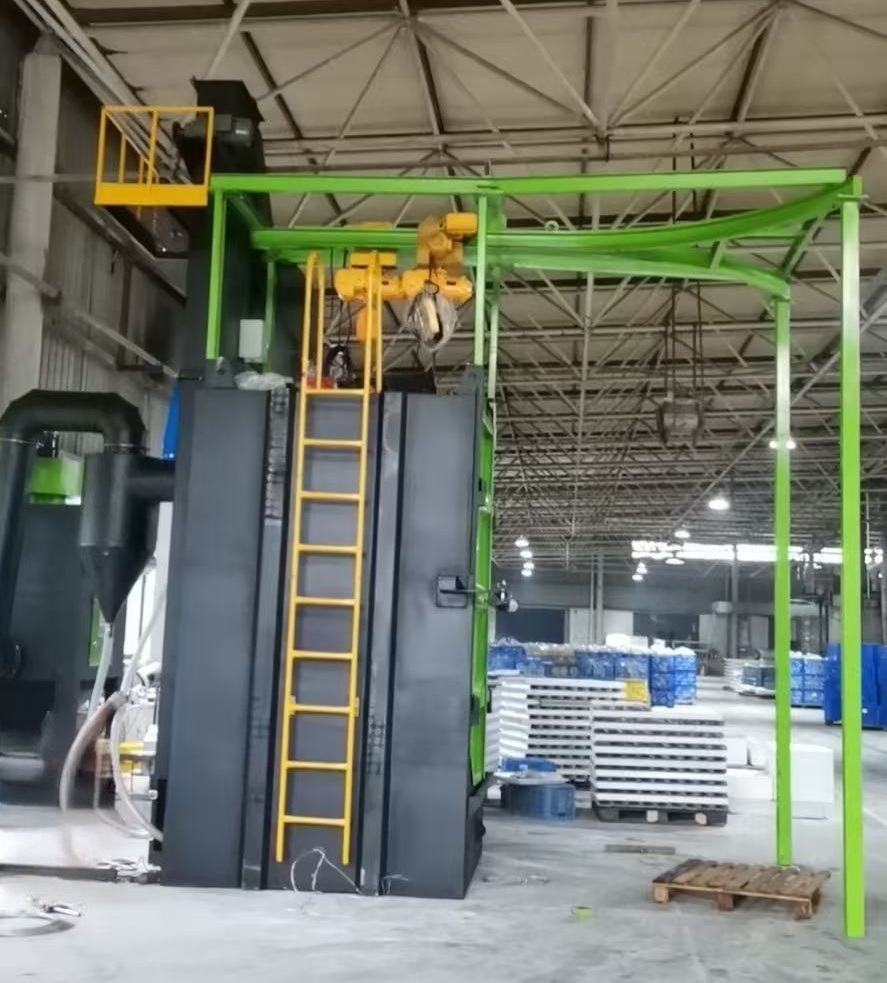

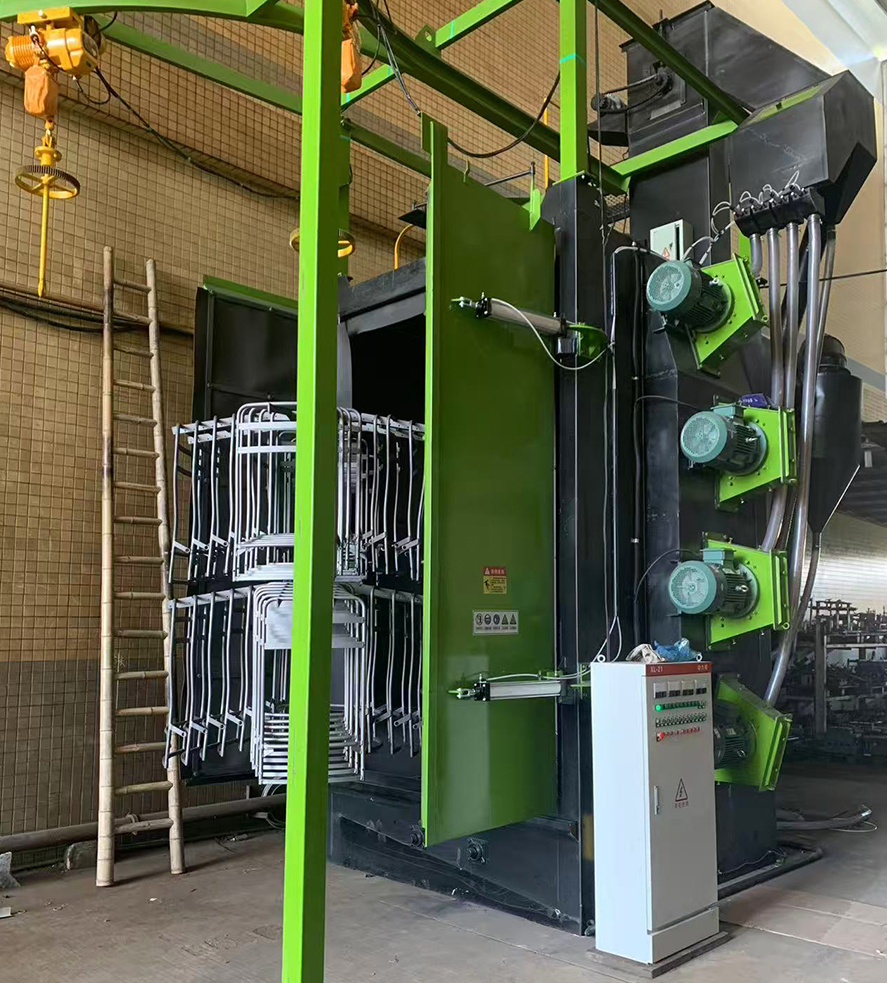

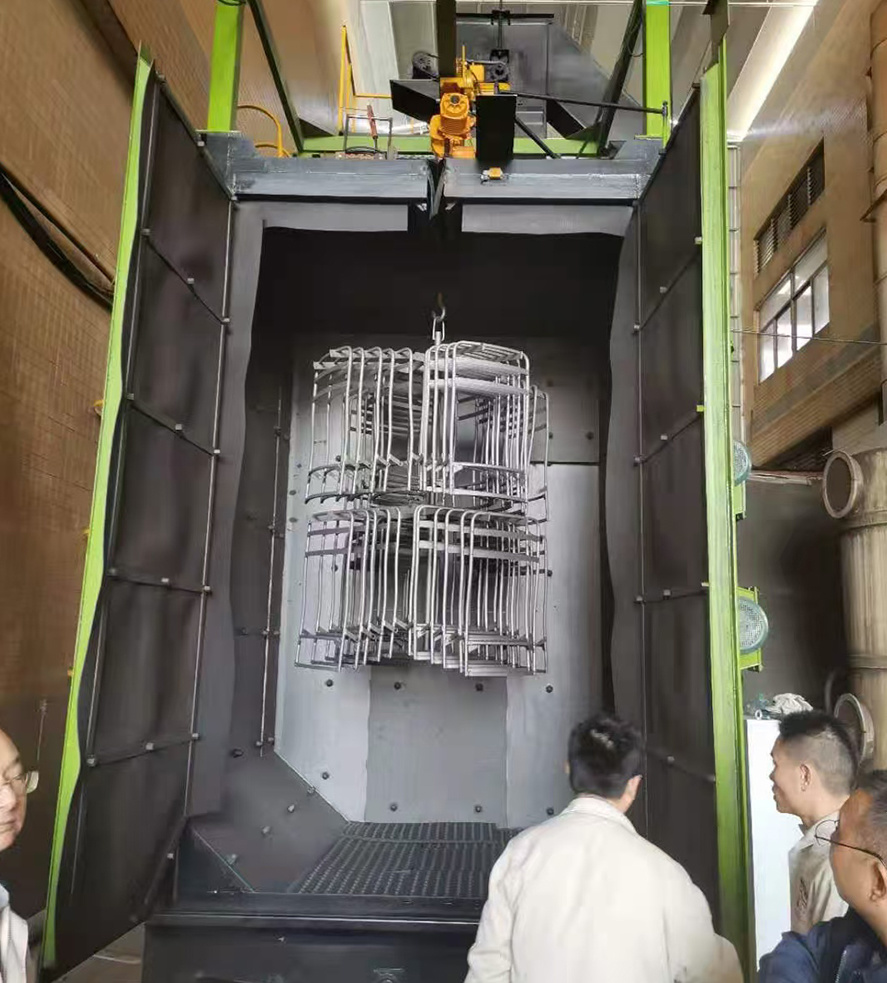

The Spinner Double Hanger Hook Machine handles castings, forgings, and small metal parts. Large pieces hang directly on hooks;small parts use fixtures. Hooks move via T/Y overhead rails into the chamber, where workpieces rotate to receive steel shot from side-mounted wheels. The chamber’s "hot area" (high-abrasion zone) is protected by Mn alloy liners. After 3–5 mins of blasting,parts exit via rails.
Main Features
This hook-type shot blasting machine series specializes in surface cleaning for castings, structural components, non-ferrous parts, and more. Available in configurations like single hook, double hook, lifting, and non-lifting types, it offers advantages such as no foundation pit requirement, compact design, and high productivity.
1. High-Efficiency Mass Processing
Optimized for medium-to-small workpieces in large-scale production, featuring a compact structure and rapid throughput.
2. Continuous Workflow
Automated process: set conveying speed → hang workpieces on hooks → remove after blasting, enabling seamless batch processing.
3. Heavy-Duty Loading Capacity
Single hook supports 10 kg–5,000 kg loads, ensuring stable operation and high productivity.
4. Precision Blasting for Complex Parts

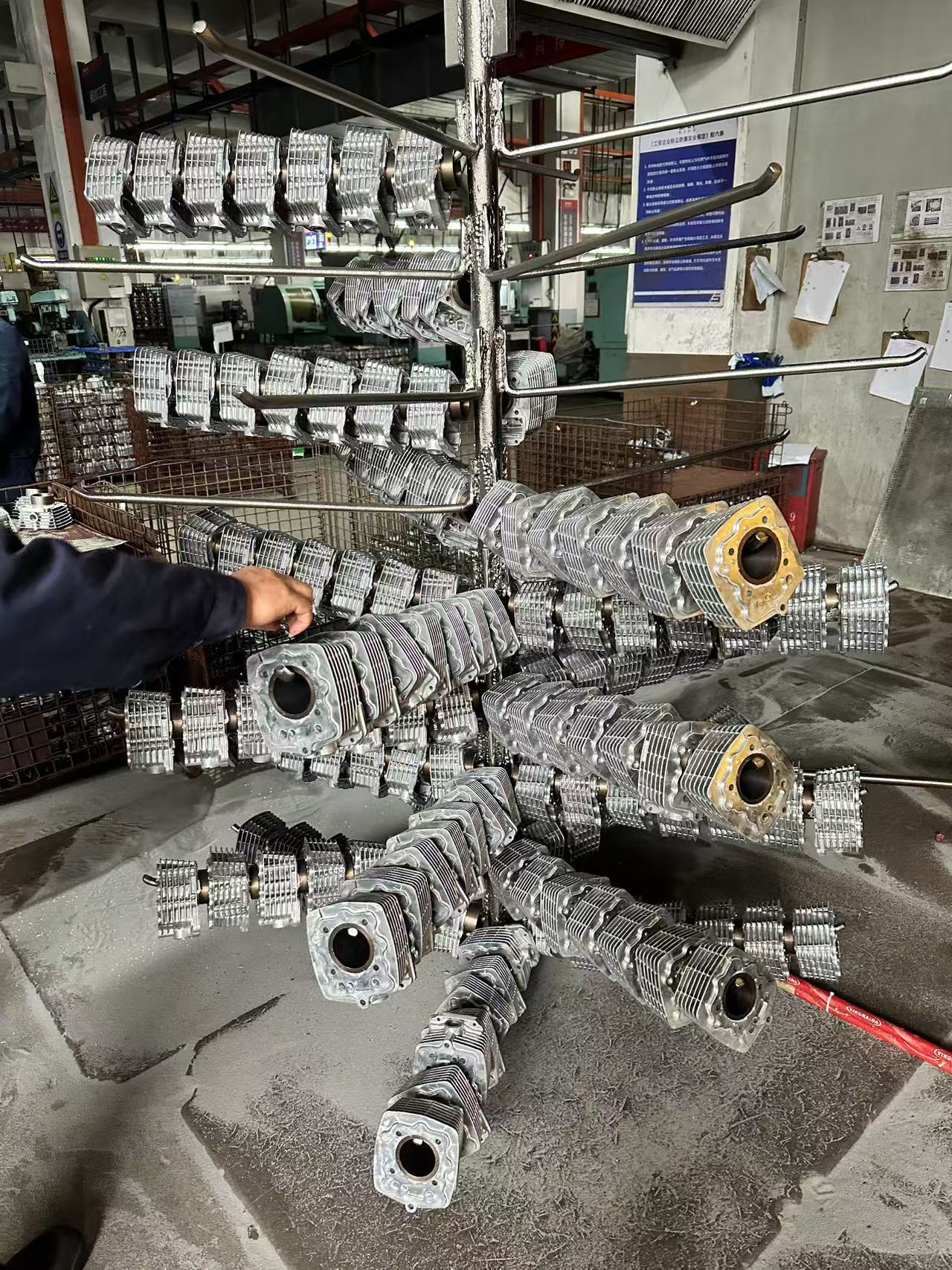

Delivers superior cleaning to both external and internal surfaces of intricate components (e.g., engine cylinder heads, motor casings).
5. Industry Versatility
Ideal for automotive, tractor, diesel engine, motor, and valve manufacturing sectors.Custom Shot Blasting Machine Solutions Tailored to Your Specifications
PRODUCT DESCRIPTION
Technical Details: Subject to Supplier Confirmation
We specialize in custom non-standard shot blasting machines tailored to:
Workpiece specifics (dimensions, material, weight: 10 kg–5,000+ kg)
Production needs (throughput, automation level, workflow fit)
Key Customizable Features:
Hook types (single/double)
Rail systems (T/Y-shaped)
Blasting time (2–10 mins adjustable)
brasion-resistant components (e.g., Mn alloy liners)
Contact us with your workpiece details and productivity goals for a personalized solution.PRODUCT DETAILS

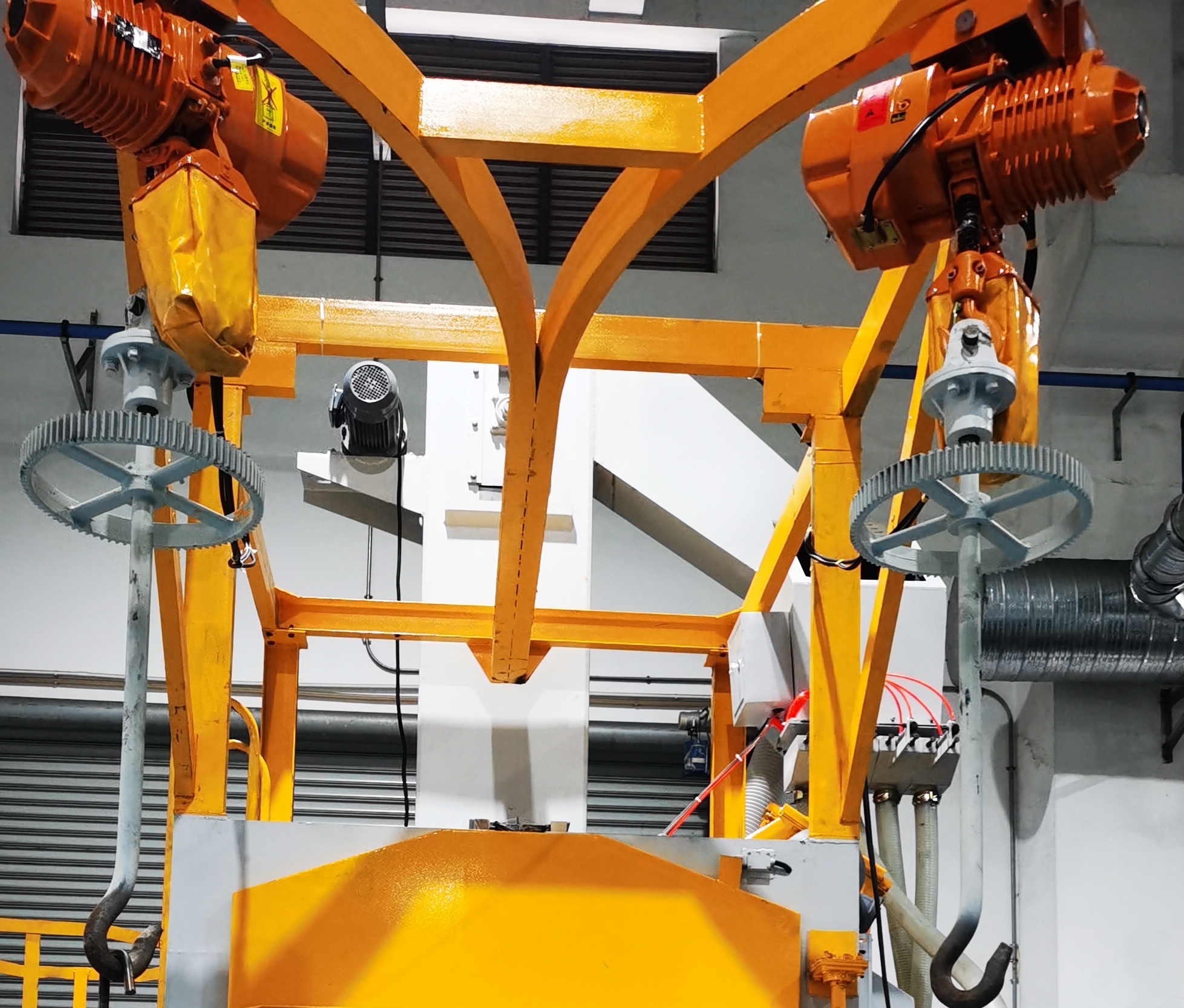

Spinner Hanger Hook System
Spinner Hanger Hook: Secures workpieces or tooling for stable transport.
Driving Motor: Powers hook rotation and rail movement into/out of the chamber.
Overhead Rails: * T-shaped: For single-hook operation.
Y-shaped: Enables dual-hook (working + loading) for parallel processing.
Rotating & Blasting Time: 3–5 mins, adjustable by workpiece typeBlasting Chambers
Blasting Wheels: Installed on the left side wall of the blasting chamber. Angles are custom-engineered to match workpiece geometries for optimal shot coverage.
Hot Area: The right interior zone of the chamber, termed the "hot area," is safeguarded by Mn alloy liners for heavy-duty abrasion resistance.
Doors: Available in manual or pneumatic configurations for flexible access and operational efficiency
Abrasive Recycling System
Screw Conveyor: Installed at the blasting chamber bottom to collect spent steel shots and transport them to the bucket elevator.
Bucket Elevator: Elevates used shots to the separator for recycling.
Separator: Utilizes dual filtering—screen and air ventilation—to sort qualified steel shots and grits for reusability.Dust Collection System
Filtration Efficiency: Reaches 99.9% filtration, ensuring dust - free operation.
Cyclone Dust Collector: Conducts efficient initial dust collection.
Dust Collector: Offered in cartridge or bag types for various applications.
Fan Extractor: Pulls dust from pipes to the collector effectively.
Ventilation Piping: Captures dust from shot blasting areas, maintaining a clean workspace.
Its superior dust removal reduces environmental pollution.
Our dust removal system combines a ducting system and a filter cartridge dust collector.

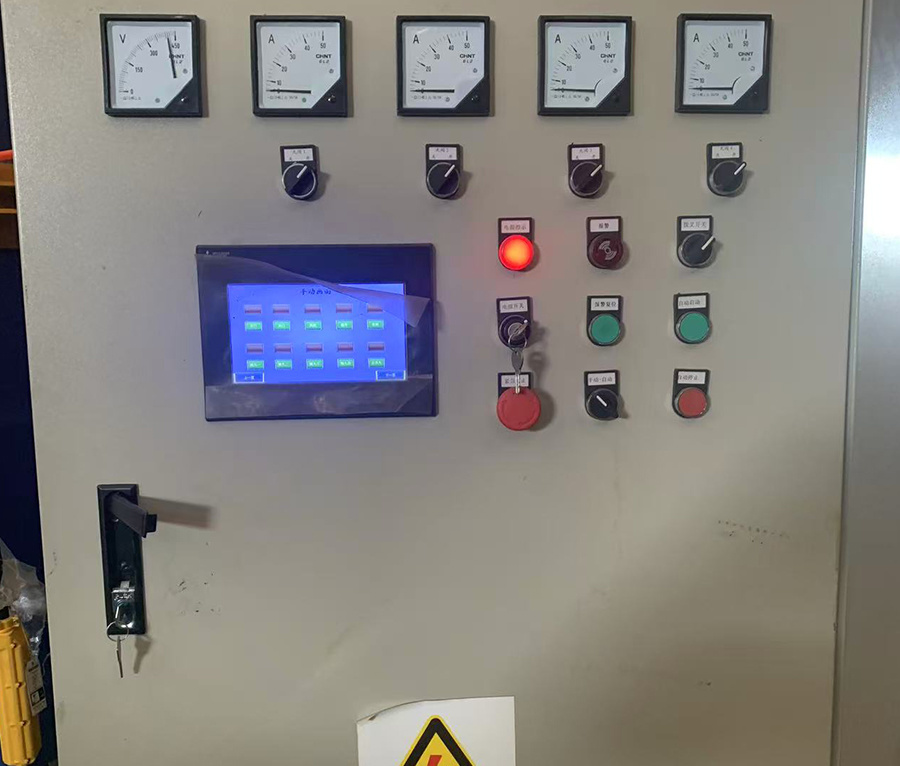

Electric Control System
Models: Available in both automatic and manual operation modes, catering to diverse operational needs.
Control Unit: Features a high - performance Programmable Logic Controller (PLC).
PLC Options: You can choose from renowned and reliable brands, including Siemens, Omron, or top - tier Chinese brands, ensuring stability and precision.
Emergency Stop Function: Equipped with emergency stop buttons on both the main control panel and roller conveyors, providing enhanced safety and immediate response in critical situations.
Power Indicator: Clearly visible on the control panel, allowing for easy monitoring of the system's power status.
Unparalleled Advantages of Roller Conveyor Type Shot Blasting Machine
1. Exceptional Versatility & User - Friendliness
With a broad range of applications, this shot blasting machine offers effortless installation and intuitive operation, making it accessible for various industries.
2. Unwavering Stability & Reliability
Benefiting from decades of technical refinement, our machines feature mature technologies and are crafted by highly skilled workers. This ensures remarkable stability and an incredibly low failure rate, minimizing downtime and maintenance costs.
3. Tailored Solutions
We understand that every customer has unique requirements. That’s why we offer fully customized services, ensuring our shot blasting machines perfectly meet your specific operational needs.
4. Aesthetically Pleasing Design
Thanks to our sophisticated manufacturing processes, our machines not only perform flawlessly but also showcase an exquisite appearance, combining functionality with visual appeal.
5. Factory - Direct Competitive Pricing
As a direct manufacturer, we eliminate middlemen, offering you top - quality shot blasting machines at highly competitive prices, providing excellent value for your investment.
6. Swift Delivery
Housed in large - scale production facilities, we have the capacity and efficiency to ensure prompt order fulfillment. Rest assured that your machine will be delivered in a timely manner, getting your operations up and running quickly.
7. Rigorous Quality Assurance
Our dedicated quality inspection department conducts stringent checks at every production stage. From raw materials to the final product, we leave no stone unturned in ensuring the highest quality standards are met.
8. World - Class Electrical Components
The electrical control system predominantly features internationally renowned brands, guaranteeing precise control, enhanced safety, and long - term reliability.
9. Extensive Experience
With over many years of production experience, we have honed our skills and expertise in shot blasting machine manufacturing. Our deep industry knowledge enables us to deliver superior - performing products.
10. Professional Design Team
Our in - house team of professional designers is committed to providing you with comprehensive support. From initial concept to final design, they work closely with you to optimize the machine for your specific applications.
11. CE - Certified Quality
Our machines are CE - certified, meeting strict safety, health, and environmental standards, assuring you of their top -tier quality.
